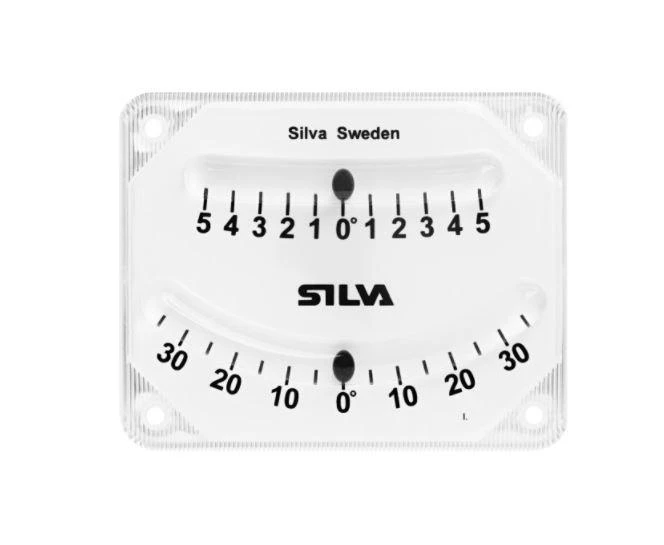

The SILVA Clinometer is a popular clinometer for all types of vehicles. It has two scales, one ±35° and a fine tuning scale ± 5°.
The SILVA clinometer is used for checking the heeling angle on sailing boats and for the power-trim check on powerboats. It is also a perfect working instrument for other applications, such as making sure that different vehicles and equipment sits “level” or keep the desired a angle.
For angles up to ± 5°, read the top precise scale, for angles over ± 5°, use the lower scale for readings up to ±35°.
| Article number | 35188-901 |
|---|---|
| Graduation | ± 5° / ±35° |
| Material | Acrylic |
| Resolution degrees / mils | 1° / 5° |
| Scales | ± 35° and ± 5° |
| Size | 10x80x100mm |
| Temperature operating range | -20 to +60 °C |
| Water resistance | IPX8 – Waterproof |
| Weight | 47g |
