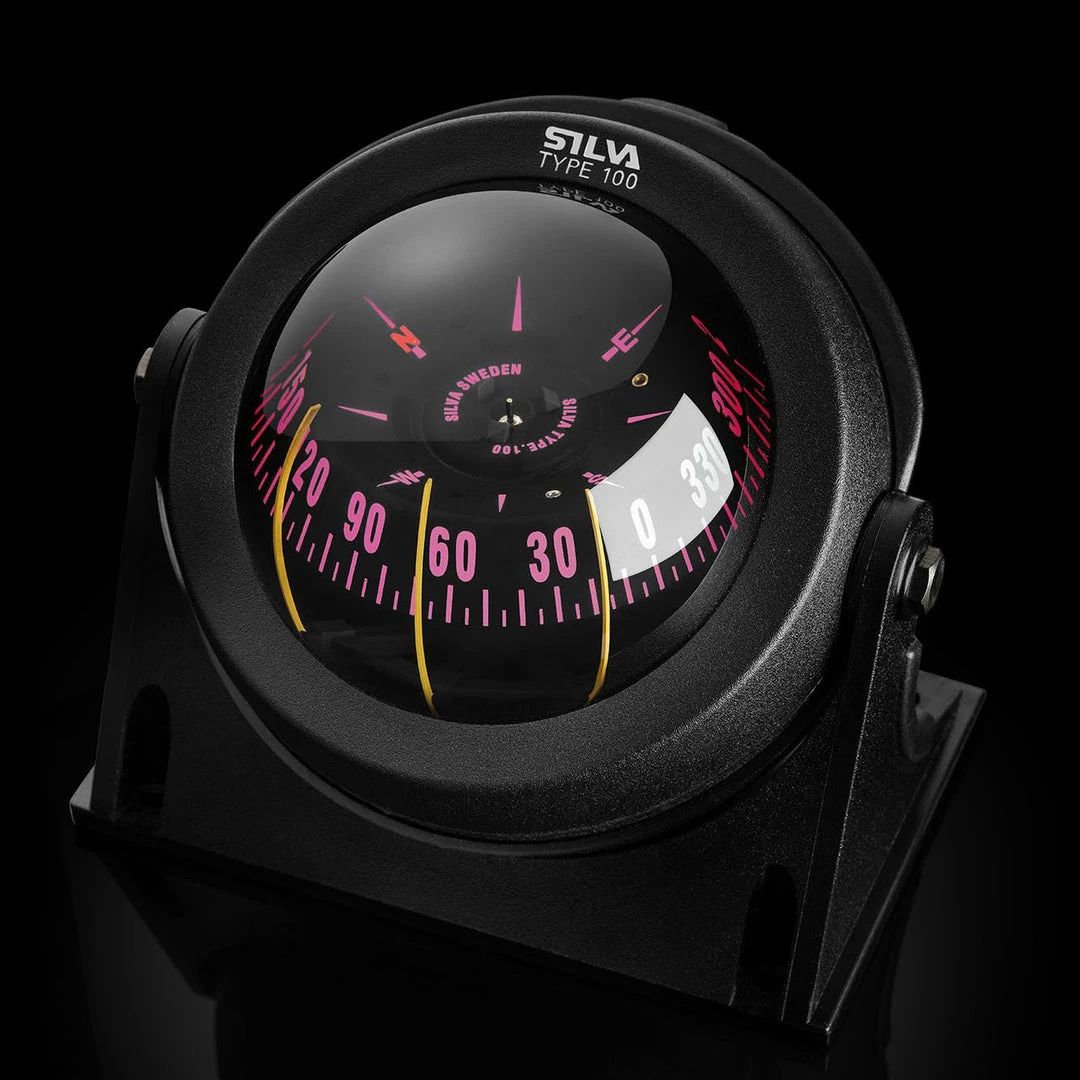

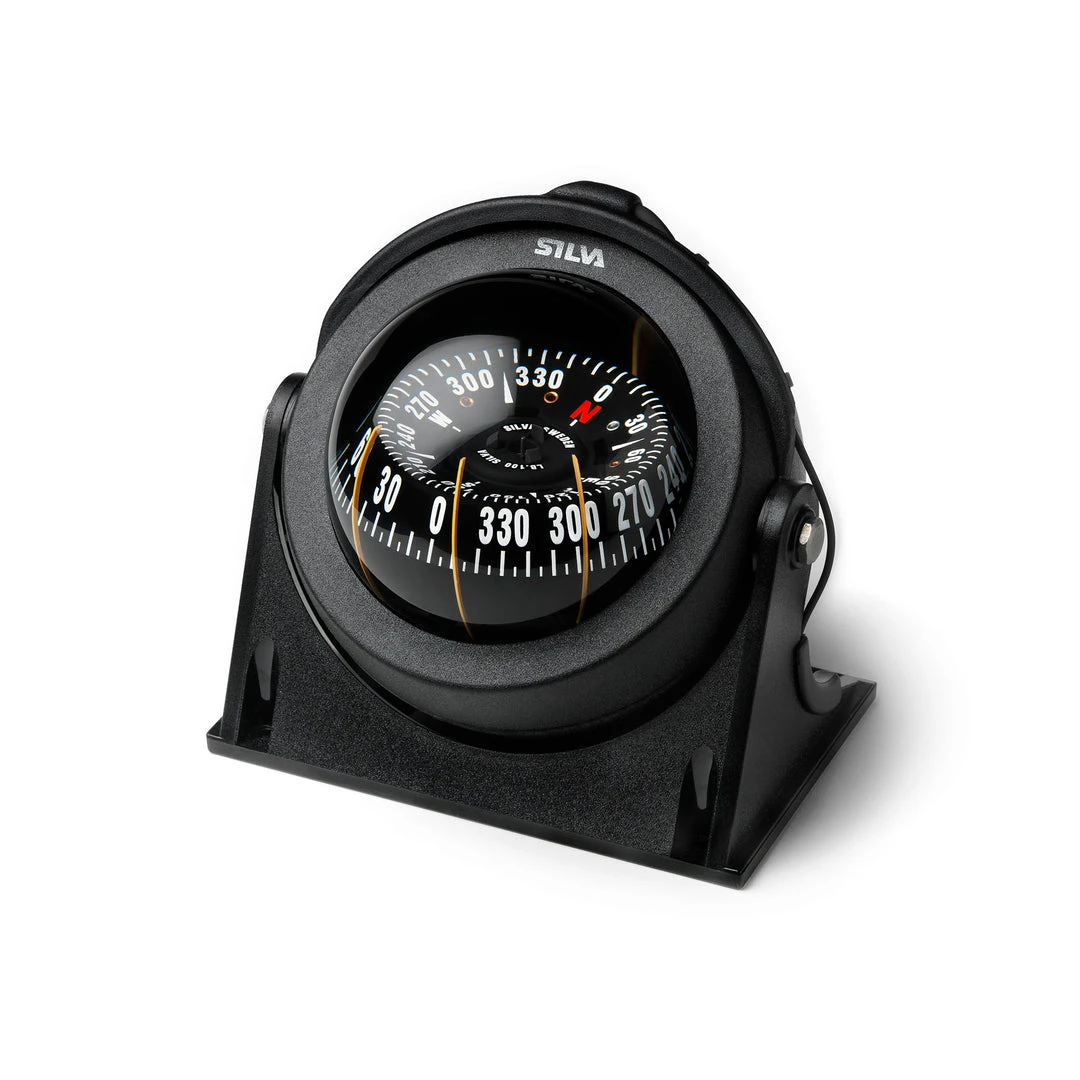

100NBC/FBC is a compass with multiple mounting options, a main steering scale on the horizontal part of the compass rose and direct reading on the vertical edge.
This compass is ideal for boats with either a sitting or standing helmsman. The compass features a built-in illumination in the adjustable protection cover and three lubber lines for multi-angle reading. The built-in deviation compensator allows you to adjust the compass if it is disturbed by a misleading magnetic field.

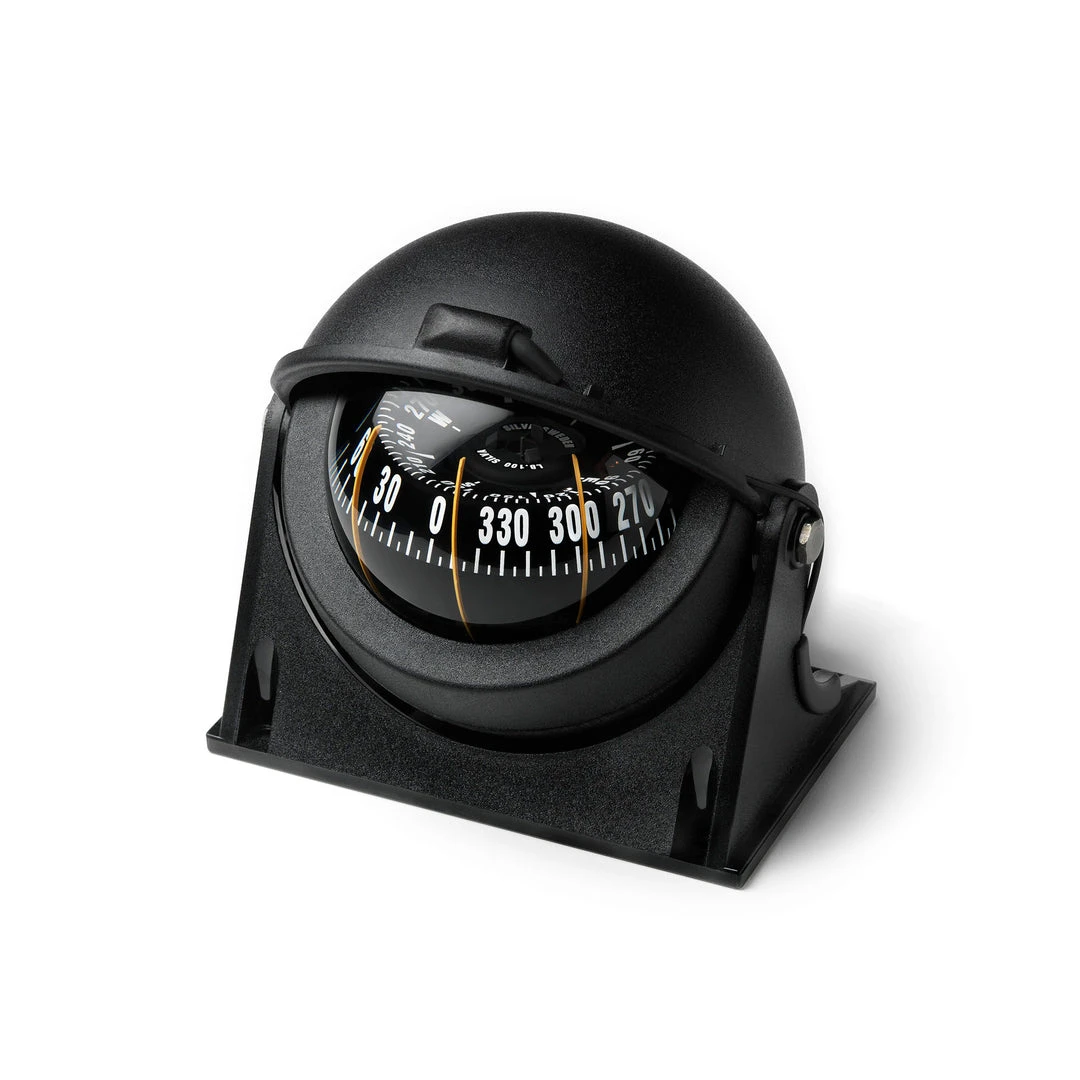

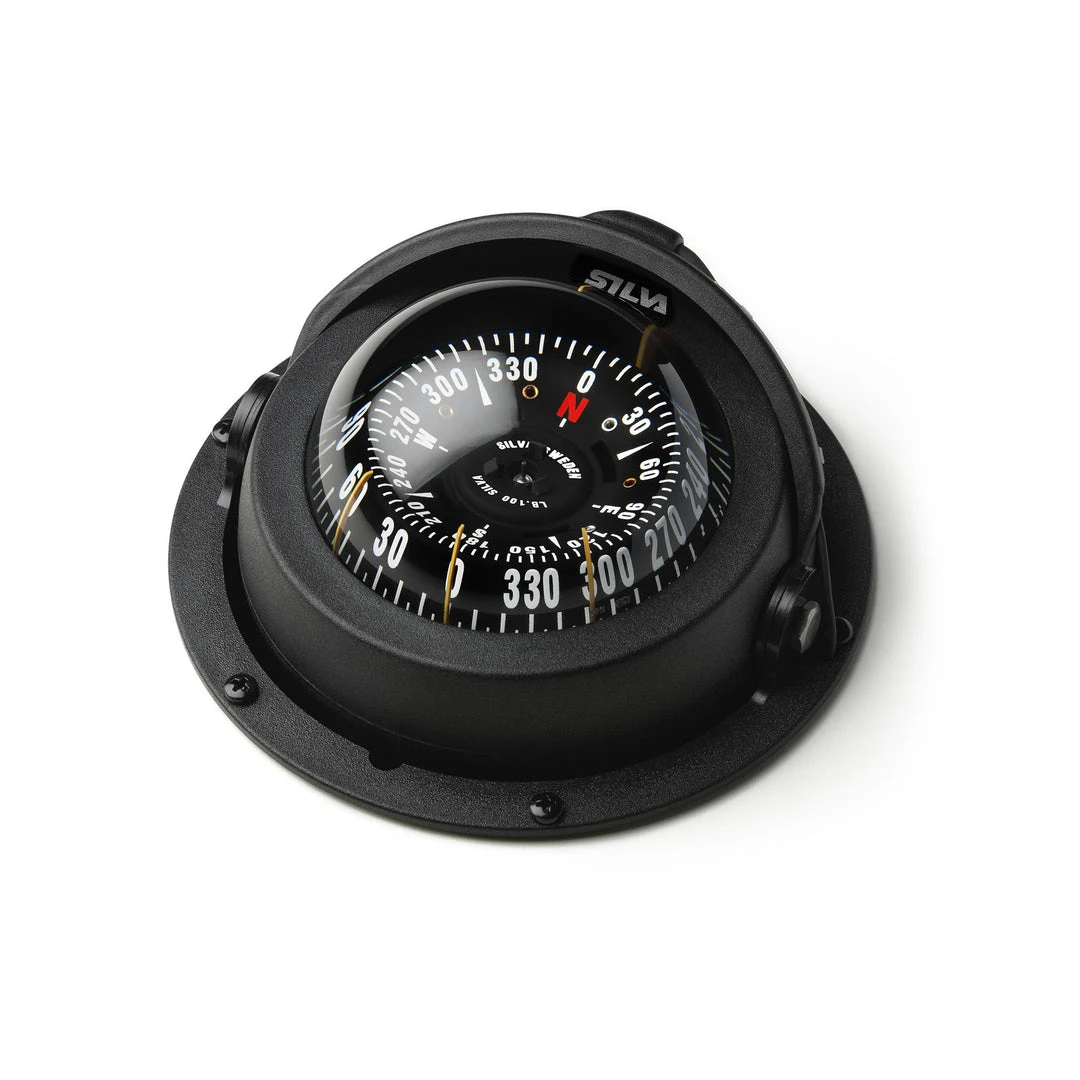

100NBC/FBC comes with two different mounting options that make it possible to mount the compass in a bracket at multiple angles or as flush/bulkhead at any angle.
| Article number | 37180-0155 |
|---|---|
| Accuracy | ± 0,5° (8.9 mils) |
| Apparent card diameter | 105mm |
| Built-in compensator | Yes |
| Card type | Cone |
| Compatibility | Powerboats |
| Dimensions | 130x146x95mm |
| Gimballed cradle | Yes |
| Heeling angle | Roll: 30° Pitch: 30° |
| Heeling angle scale | No |
| Illumination | 12V., Red |
| Lubber lines | Centre and 2x side view at 45° |
| Magnetic zone | Magnetic south |
| Material | ABS, Acrylic |
| Memory ring | No |
| Mounting | Bracket, Flush/bulkhead |
| Mounting angle | 0° to +110° |
| Protective cover | Yes |
| Temperature operating range | -10°C to +70°C |
| Weight | 1082g |
